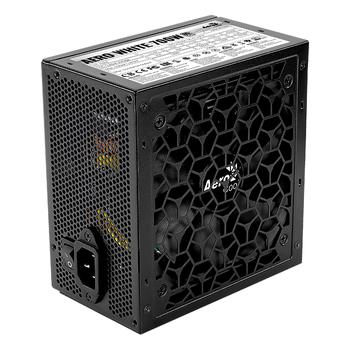

AEROCOOL Netzteil AERO WHITE 700W
|
|
AEROCOOL Netzteil AERO WHITE 700W
Varenr.: ACPW-AR70AEC.11
EAN: 4710562753943
-
Effekt
700W
-
80 PLUS certification
80 PLUS White
Butiklager:
Ikke på lager
Fjernlager:
Forventes på lager
06-12-2023
|
|
Beskrivelse
Specifikationer
AERO WHITE 700W
Featuring best in class protections and impressive performance while offering one-of-a-kind affordability, the AERO PSU series is perfect for DIY PC builders who want a feature-packed power supply without breaking the bank.
Features:
- Up to 87% efficiency with 80Plus 230V EU Standard certified.
- Compatible with all Intel form factors up to ATX12V Ver.2.4.
- Built-in APFC providing higher voltage stabilization and lower power consumption (Active Power Factor Correction rate > 0.9).
- Delivers real output wattage at ambient temperatures of 40°.
- Unique AERO PSU style mesh design with matte black finishing adds a premium look and feel to your rig.
- Built-in 105°C Japanese main capacitor provides low ripples and higher durability for PSU and all PC system.
- High-end solid state capacitors provide great DC output quality for improved noise filtering and low ripple.
- 12cm high-pressure fan with optimized fan speed allows for near inaudible fan noise and silent PSU operation.
- Smart thermal fan control keeps the fan running at startup speed before reaching 60% load at 40°C ambient temperatures.
- Soft, black flat cables allow for efficient cable management and improved airflow.
- AWG#18 copper wiring with 34 cores and phosphor-bronze connector pins provides high DC current endurance, allowing for longer PSU and PC lifespan.
- Best in class protections makes PSU highly resistant to damage: OVP, UVP OPP, SCP, OCP, and input Surge & Inrush Protection
- Compliant with ErP 2013 Lot 3 for high energy efficiency.
- ROHS (Restriction of Hazardous Substances) certified.
- Fully EMC Compliant.
Specifications:
| AC Input |
200-240Vac 5A 47-63Hz |
| DC Output |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
| Max Current |
20A |
20A |
55A |
0.3A |
2.5A |
| Max.Combined Power0 |
130W |
660W |
3.6W |
12.5W |
| 700W |
| MTBF |
100,000 hours @ Ambient 25 °C |
| EAN CODE |
4710562753943 |
Strømstyring |
|---|
| Total effekt | 700 W |
| Vekselstrømsindgangsspænding | 200 - 240 V |
| Vekselstrømsindgangsfrekvens | 47 - 63 Hz |
| Indgangsstrøm | 5 A |
| Kombineret effekt (+3,3 V) | 130 W |
| Kombineret effekt (+12 V) | 660 W |
| Kombineret effekt (+5 V) | 130 W |
| Kombineret effekt (-12V) | 3,6 W |
| Kombineret effekt (+5 VSB) | 12,5 W |
| Maks. udgangsstrøm (+3,3 V) | 20 A |
| Maks. udgangsstrøm (+12 V) | 55 A |
| Maks. udgangsstrøm (+5 V) | 20 A |
| Maks. udgangsstrøm (-12V) | 0,3 A |
| Maks. udgangsstrøm (+5 VSB) | 2,5 A |
| Effektivitet | 87% |
Porte & Grænseflader |
|---|
| Motherboard, strømstik | 20+4 pin ATX |
| Antal SATA strømstik | 5 |
| Antal PATA strømstik | 3 |
| PCI ekspres strømforbindelser (6+2 pin) | 4 |
Præstation |
|---|
| Formål | PC |
| Strømforsyningenhed (PSU) formfaktor | ATX |
| 80 PLUS certificering | 80 PLUS White |
| ATX-version | 2.4 |
| Gennemsnitstid mellem fejl (MTBF) | 100000 t |
Design |
|---|
| Produktfarve | Sort |
| Ventilator diameter | 12 cm |
| Antal blæsere | 1 blæser(e) |
